EJDER YALÇIN

EJDER YALÇIN 4x4 Armored Combat Vehicle a unique platform that has high protection and mobility, is developed to meet the operational requirements of military units and security forces in every region including rural and urban areas.

By its unique design and high payload capacity, different payloads can be integrated; therefore EJDER YALÇIN 4x4 can be customized for various applications. EJDER YALÇIN 4x4 offers superior off-road performance with its high torque capable diesel engine and fully independent suspension system. During the development of EJDER YALÇIN 4x4, in addition to the superior protection features, user's operational & ergonomic requirements were also considered and an ideal platform was created for the personnel to operate more efficiently and more secure in the field.

OVERVIEW

  • Superior protection against mine blasts and IED

  • Monocoque “V” body

  • Floating floor system

  • Ergonomic mine seats mounted to side walls

  • Special door lock system against the mine blasts and IED explosions

  • Ergonomic design

  • Integration of manual or remote control turret systems

  • Left & right hand adopted gun loops

  • Run-flat tires

  • Interior gunpowder smoke evacuation fans

  • 5 Doors Configuration allowing easy embarking and disembarking of the personnel

  • Ready to use radio infrastructure

  • Rectifier integrated to the vehicle

  • Hydraulic assisted power steering

  • Quick, easy and low-cost maintenance

  • Certified ballistic and mine protection

SURVIVABILITY

Superior ballistic protection

Superior protection against mine blasts

Superior protection against Improvised Explosive Devices (IED)

Emergency exit hatches

Protection Grills on windscreen and sight windows

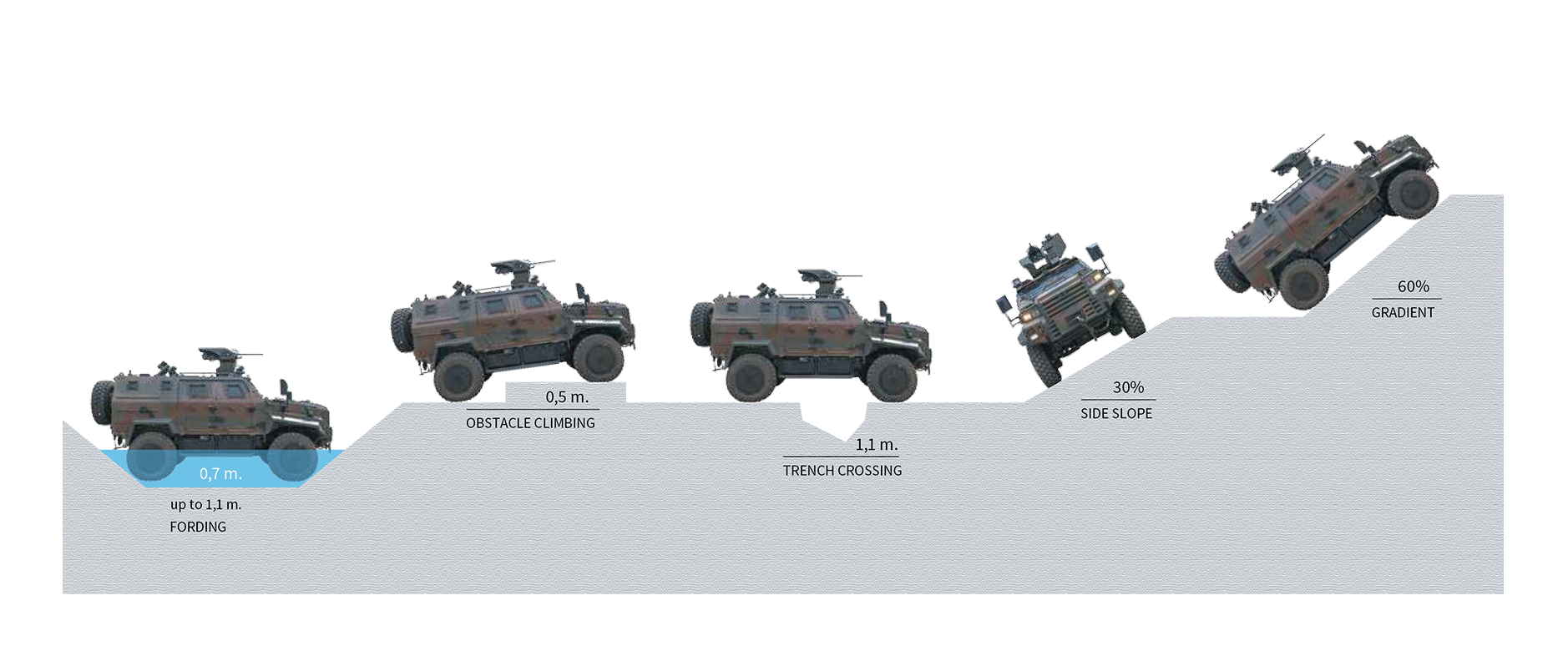

LAND PERFORMANCE

Double wishbone fully independent suspension system for all wheels

Permanent 4WD

Latitudinal and longitudinal differential locks

Effective parking brake system at full capacity and on high slopes

ABS brake system

Large & Wide Off-Road Tires

PAYLOAD CAPACITY AND INTERNAL VOLUME

Up to 4 tonnes of payload capacity depending on the vehicle configuration

Different seating configurations able to carry up to 11 personnel according to the operational needs

STRATEGIC FEATURES

Airway-Seaway-Railway transportation

Ability to use different types of fuel (F34 and F54 and other)

Adapting to Joint/Combined & Multinational Operations

Easy adaptation of different weapon systems

Ability to operate between -32 oC and +55 oC degrees

Multi-mission family of vehicles

EJDER YALÇIN CONFIGURATIONS

EJDER YALÇIN offers special solutions for miscellaneous operation requirements.

Explosive Disposal Vehicle (EOD)

Explosive Disposal Vehicle (EOD)

Border Surveillance & Security Vehicle

Border Surveillance & Security Vehicle

Air Defense Vehicle

Air Defense Vehicle

Command and Control Vehicle

Command and Control Vehicle

Combat Vehicle

Combat Vehicle

CBRN Surveillance Vehicle

CBRN Surveillance Vehicle

Personnel Carrier Vehicle

Personnel Carrier Vehicle

Mine/IED Detection - Clearance Vehicle

Mine/IED Detection - Clearance Vehicle

Armored Ambulance

Armored Ambulance

OPTIONAL FEATURES

  • Flexible Armor Apllications against RPG attacks

  • Integration of add-on armor for higher ballistic protection

  • Chemical, biological, radiological, nuclear (cbrn) protection system

  • Central tire inflation system

  • Internal communication system

  • Front & rear camera systems

  • Day/night vision system

  • Self-recovery winch

  • Smoke grenade launchers

  • Internal controlled powerful projector and announcement system

  • Blackout system

  • Entryphone system

  • Hydraulic back door

  • Emergency case steering pump

  • Fuel tank; explosion proof & puncture resistant

  • 360o driver vision enhancement system

  • Preheating system for cold environments

  • Engine preheating system

  • Right hand drive steering

  • Tear gas dispenser system

  • Military gps and vehicle tracking system

  • Automatic Fire extinguishing and explosion suppression system

  • Vehicle, tire and engine compartment fire extinguishing system

Base Vehicle Features

  • Personnel Up To 11
  • Gross Weight 14 tonnes
  • Additional Payload Capacity 4 tonnes
  • Speed 120 km/h
  • Range 700 km.
  • Engine 375 HP
  • Acceleration 0-40 km/h 6 sec.
  • Turning Radius 7.75 m.
